Casa ProdutosTelhado da telha roll dá forma à máquina845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine
845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine
845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine
845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine

845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine

Detalhes do produto:
Lugar de origem: China
Marca: NKH MACHINERY
Certificação: CE/SONCAP/CSA
Número do modelo: O número de veículos aéreos
Condições de Pagamento e Envio:
Quantidade de ordem mínima: 1 UNITA
Preço: Negociável
Detalhes da embalagem: CARGAS NUDE PARA O ROLO ANTERIOR COM O CORTADOR NO RECIPIENTE DE 40FT, CAIXA DE MADEIRA PARA O ARMÁR
Tempo de entrega: 90 dias de trabalho
Termos de pagamento: L/C, D/A, D/P, T/T
Habilidade da fonte: 5 unidades/mês
contacto

Informação detalhada
Nome: Telha do metal que forma a máquina Matéria-prima: Bobinas pré-pintadas
Peso da bobina: 10 toneladas ou por pedido Materiais para rolos: 45# Aço
Diâmetro do eixo: 75 mm Sistema de controlo: Sistema de controlo PLC
Material da lâmina de corte: Cr12, tratamento térmico

Descrição de produto

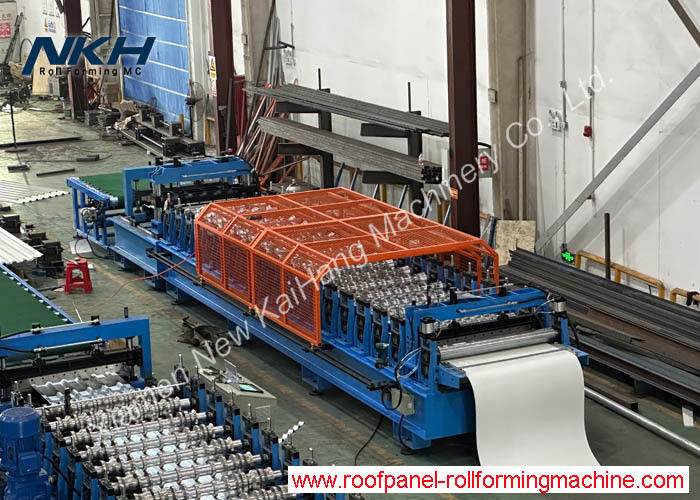

845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 0

Metal Roof Tile Roll Forming Machine, Non-stop Pressing and Cutting



Application:

Metal step roof tiles produced by glazed tile roll forming machine from high quality pre-painted sheets most time apply as roofing on Villas or some residential buildings.

There is only one but key difference between a metal glazed roof tile and a regular metal roof panel: Steps! Generally speaking, a regular metal roof panel with steps is called a metal glazed roof tile !



Quick Detail:

  1. Thickness : 0.4mm-0.7mm
  2. Material : High quality pre-painted coil
  3. Input width : 1220mm
  4. Effective width: 845±4mm
  5. Material weight : 10tons as standard
  6. Driven way: Gear/Sprocket driving

Machine list:

  1. Hydraulic de-coiler or manual un-coiler rack
  2. Roll former
  3. Hydraulic stair drawing device, non-stop pressing
  4. Hydraulic cutting device, non-stop cutting
  5. Stacker
  6. PLC control systems

Drawings/Pictures of Complete Line:

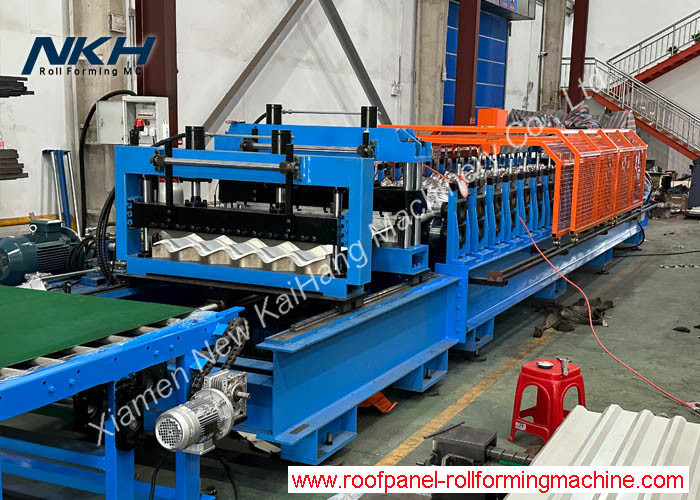

845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 1

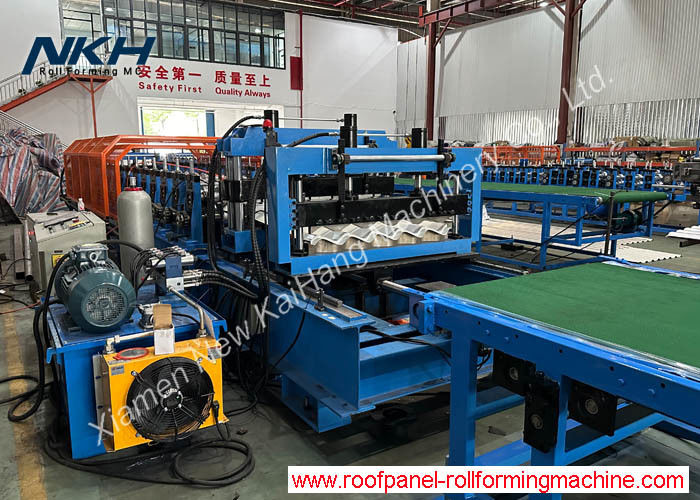

845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 2

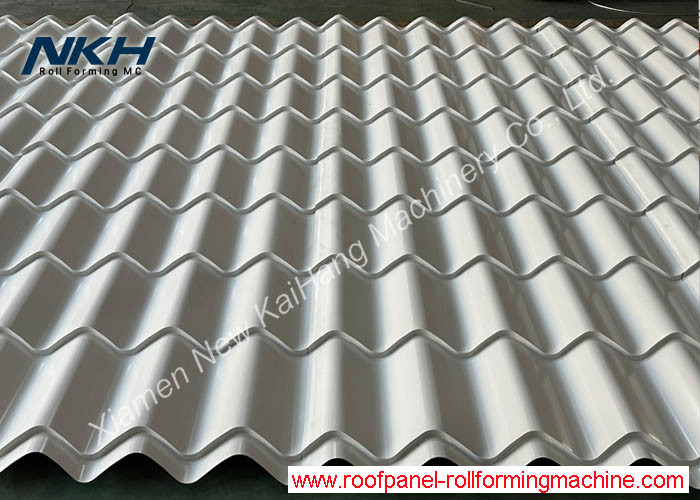

845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 3
